MB-S22 Ultrasonic Double Side PE Paper Cup Machine

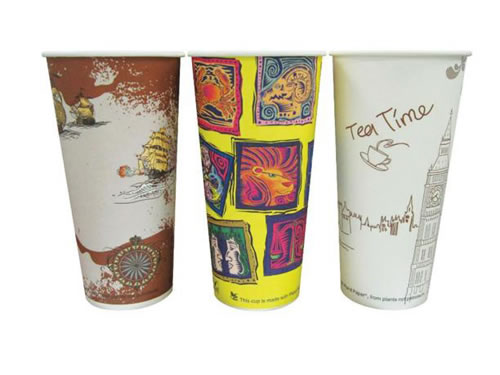

MB-S22 ultrasonic double side PE paper cup machine is a kind of multi-station automatic molding machinery. It can produce both single PE coated and double PE coated paper cups. Compared to MB-S16 ultrasonic double side PE coated paper cup machine, this ultrasonic paper cup machine is more suitable for tall cups, whose height varies from 140 mm to 165 mm. With photoelectric detection, fault alarm and counting functions, it has become an ideal device for producing special beverage cups, tea cups, coffee cups, ice cream paper cups or other disposable cone type food paper containers. In addition to double side PE coated paper cup machine, we also produce single or double PE coated paper cup forming machine, PLC controlled high speed paper cup machine and cup top flatten machine. We should remember to keep the ultrasonic paper cup machine clean and lubricate the machine with oil regularly.
1. Adopting imported ultrasonic system for making cups, ultrasonic double side PE coated paper cup machine does not damage the printing on the paper cup and makes paper cup maintain tidy, smooth and reliable qualities.
2. This ultrasonic paper cup machine comes with fully automatic functions for paper cup forming, such as air-suction paper feeding, container wall forming, adhering, knurling, paper-lip forming, etc.
3. The equipment has an optically controlled contactless switch that can automatically control the machine and secure the safety of both the machine and operator.
4. Double side PE coated paper cup machine features stable performance and simple operation.
5. This ultrasonic paper cup machine also possesses ultrasonic welding function to make cups beautiful.
6. It adopts micro-computer system to control the changing frequency and owns infinite speed adjustment function.
7. Double side PE coated paper cup machine is mainly composed of ultrasonic sealing system, index, speed reducer, motor, knurling set, bottom heating set and inverter.
8. This ultrasonic paper cup machine is workable with the power ranging from 220 V to 380 V.
9. It runs a series of successive procedures including automatic paper feeding, sealing, oiling, bottom punching, heating, knurling, curling, cup discharging, etc.
Packaging and Transportation
We use wooden cases to package double side PE coated paper cup machines, which is convenient for sea transportation.
Parameters of MB-S22 Ultrasonic Double Side PE Paper Cup Machine
|Paper Cup Size||16 to 22 oz(special size could be customized.)|
|Speed||35 to 40 pcs/min|
|Paper Cup Top Diameter||Min. 70 mm to Max. 110 mm|
|Paper Cup Bottom Diameter||Min. 35 mm to Max. 75 mm|
|Paper Cup Height||Min. 140 mm to Max. 165 mm|
|Raw Material||180 to 380 gsm, Single PE or Double PE Coated Paper|
|General Power||7 kW|
|Electricity||380 V, 3 phases or 220V, 1 phase|
|Measurement||2.8 m × 1.2 m × 1.8 m|
