J-DC750 Automatic Platen Die Cutting Machine
Description

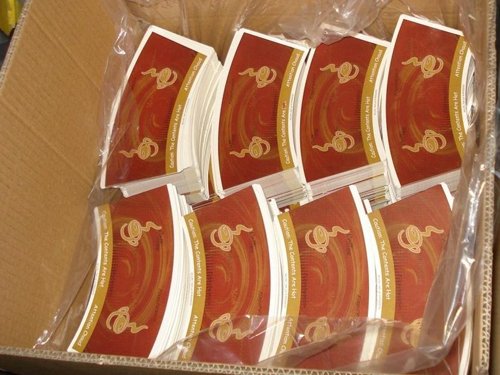

J-DC750 automatic platen die cutting machine adopts worm structure, PLC control and touch-screen design. Under the traction of stepper motor, reel paper (web) is sent to the platen die cutting device. The feeding amount can be set through the screen conveniently and precisely. Blank paper and printing paper can both be die-cut. The reel paper die cutting machine uses pneumatic clutch, which contributes to fast and reliable operation. It also improves production with high quality, low consumption and high security. The automatic platen die cutting machine adopts automatic feeding control and color tracking to realize precise die cutting and easy operation. Mould is easy to replace with low cost. This reel paper die cutting machine is suitable for cutting various envelopes, pill cases, gift bags, paper cups, paper bowls and many other types of paper and plastic products. Our company makes use of wooden cases for sea transportation.
Parameters of J-DC750 Automatic Platen Die Cutting Machine
| Model | J-DC750 |
| Die Cutting Precision | ±0.25 mm |
| Max. Die Cutting Speed | 150 strokes/min |
| Max. Die Cutting Pressure | 15 t |
| Max. Die Cutting Paper Dimension | 750 mm × 290 mm |
| Max. Unreeling Diameter | 1200 mm |
| Applicable Paper | 80 to 800 gsm |
| Total Motor Power | 4.5 kW |
| Overall Dimension | 3200 mm × 1500 mm × 1800mm |
| Total Weight | 1800 kg |
Lantytk® Corp. is a professional manufacturer of automatic platen die cutting machines in China. In addition to reel paper die cutting machine, our company also offers paper cup machine, paper bucket forming machine, paper plate machine, cup lid machine, paper bowl machine, flexo printing machine, etc. Our products have been exported to Jordan, Algeria, Qatar, India, Indonesia, Taiwan, Libya, Russia, and so on. If you are interested in our automatic platen die cutting machines, please feel free to contact us.
