MB-420 PLC Controlled Automatic Cup Lid Forming Machine
Description

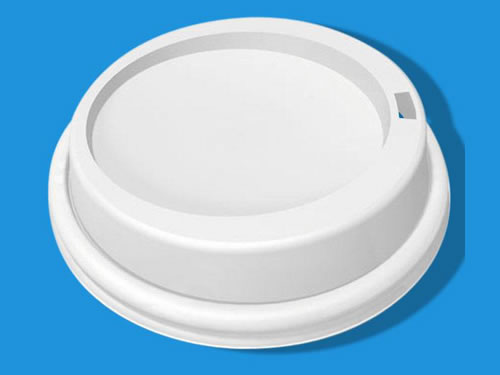

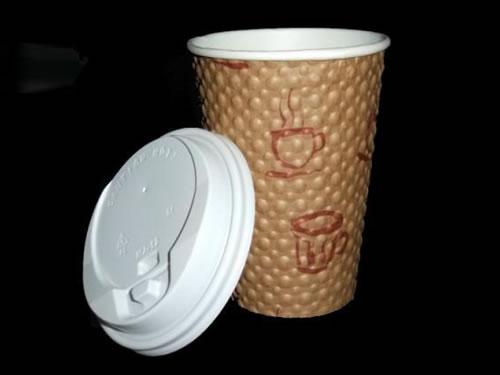

MB-420 PLC controlled automatic cup lid forming machine is mainly used for molding and punching of plastic products, such as HIPS, PS, PVC, PET, etc. It is a new type of automatic cup lid making machine that combines advantages of several types of main forming machines and also brings more improvement and innovation. Unwinding, molding, punching, blanking and rolling can be done synchronously. MB-420 cup lid forming machine (cup lid making machinery) adopts special feeding device that can save 20 times electric power. Besides, special punching device can save five percent of materials. This automatic cup lid making machine realizes GMP or QS double standard dust-free purification production that improves products’ hygiene and safety and solves cross-contamination. It features adjustable stroke and easy mold replacement. Customers can easily replace section sizes to fit a variety of specifications of products.
Features
1. This cup lid forming machine features compact structure, reliable performance, smooth operation, stable function, easy operation and low maintenance.
2. Lantytk® automatic cup lid making machine possesses PLC human-computer interface and touch screen, adn realizes stepless frequency control and PC circuit control.
3. The maximum feeding width is 420 mm and the diameter is up to 160 mm.
4. PLC controlled cup lid forming machine includes the following main parts: cylinder, cam and motor.
5. For packing of this automatic cup lid making machine, our company makes use of wooden cases for sea transportation.
6. We can design different moulds according to users’ needs.
Parameters of PLC Controlled Automatic Cup Lid Forming Machine
| Cutting Frequency | 15 to 45 times/min |
| Power Supply | 380V, 220V, 50 Hz |
| Stroke Adjustable Range | 30 to 160 mm |
| Max. Forming Depth | 30 mm |
| Max. Forming Area | 400 mm × 160 mm |
| Capacity | 3600 pcs/h to 6000 pcs/h |
| Motor Power | 1.5 kW |
| Consumption | more than 0.2 m3/min |
| Pressure | 0.4 to 0.7 Mpa |
| Overall Dimension | 2500 mm × 1000 mm × 1600 mm |
| Weight | 1000 kg |
Lantytk® Corp. is a professional manufacturer of PLC controlled cup lid forming machines in China. In addition to automatic cup lid making machine, our company also offers paper cup machine, paper bucket forming machine, paper plate machine, die cutting machine, paper bowl machine, flexo printing machine, etc. Our products have been exported to Jordan, Algeria, Qatar, India, Indonesia, Taiwan, Libya, Russia, and so on.

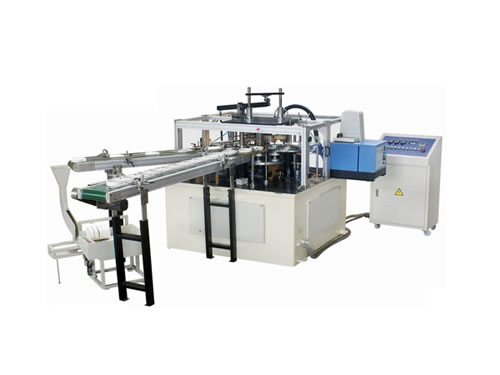

- Automatic Paper Lid Forming MachineAutomatic paper lid forming machine is also called automatic paper cup cover machine or automatic paper lid making machinery. It is mainly used for manufacturing covers with different shapes, such as ice cream cup lids and jewellery box lids. Its main parts include gearbox, reduction gear and American hot melt adhesive box. This equipment adopts advanced molding technology to complete a variety of molding processes and to completely replace the manual procedures...
