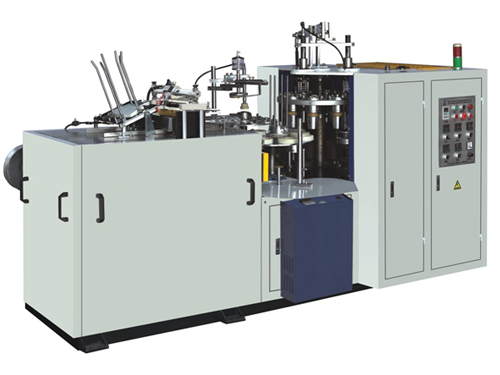

MB-A12 Single PE Coated Paper Cup Machine

MB-A12 Single PE Coated Paper Cup Machine

Introduction
Single PE coated paper cup machine is the ideal equipment for producing single-sided coated paper cups. This paper cup forming machine has unique design with a guard cover for heat dissipation that ensures longer life span. It features easy operation, stable performance, small occupying area, low consumption and high efficiency. It can run stably with little noise. As an automatic paper cup making machine, this single PE coated paper cup machine runs lots of procedures including automatic paper feeding, side sealing, oiling, bottom punching, bottom pre-heating, bottom folding, bottom knurling, top curling and cup discharging. Besides, Lantytk® also produces double PE coated paper cup forming machine, ultrasonic double side PE paper cup making machine, PLC controlled high speed paper cup machine and cup top flatten machine.

Application

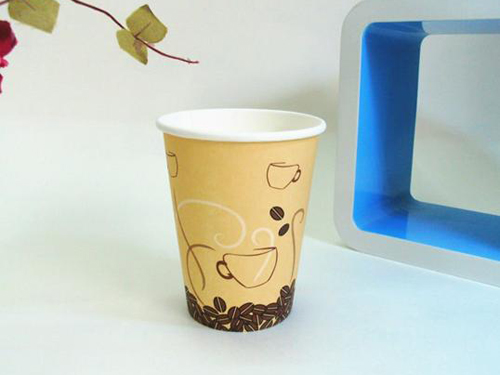

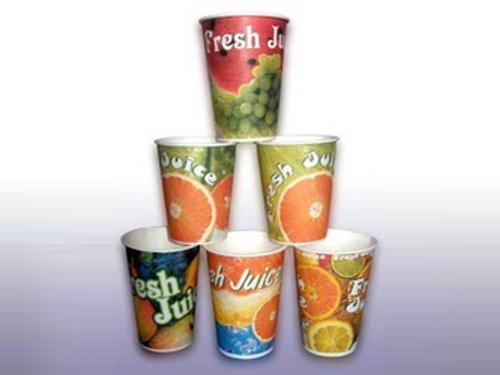

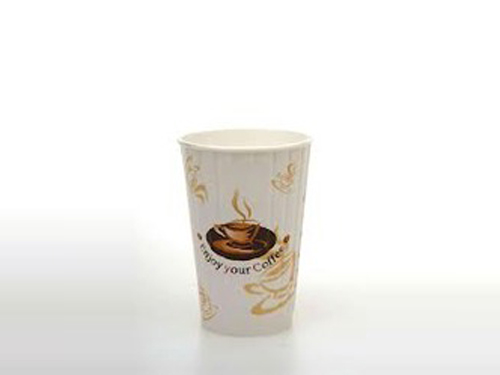

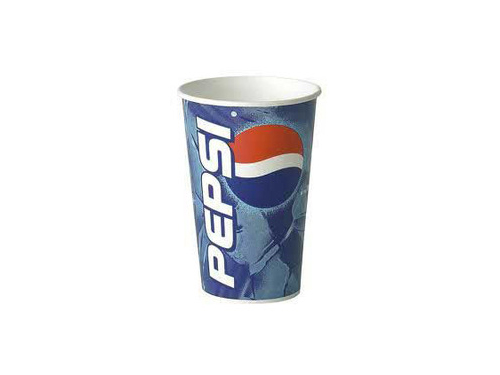

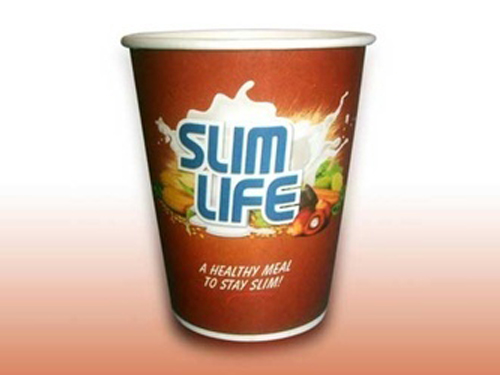

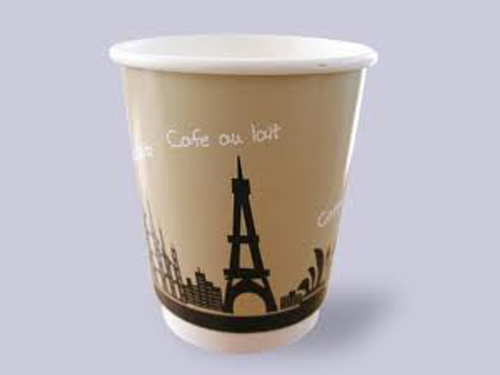

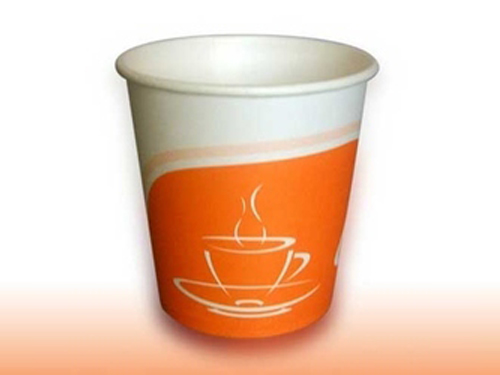

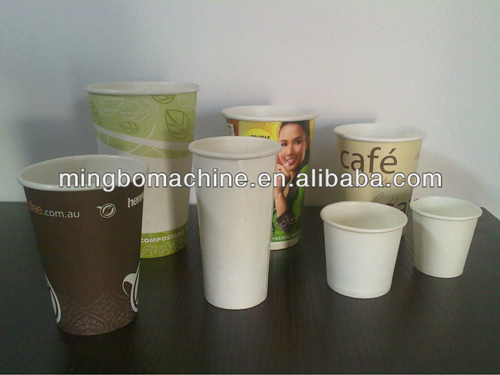

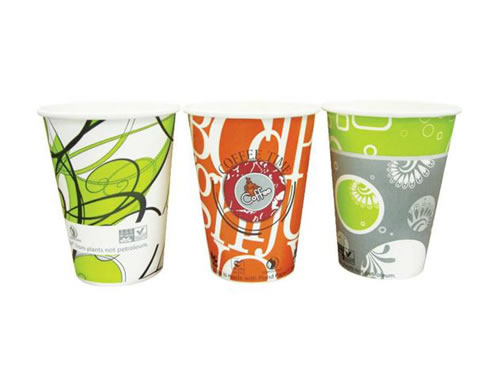

Paper cups produced by MB-A12 single PE coated paper cup machine can be used for tea, coffee, milk, ice cream, juice and water. It is an economical and classical paper cup forming machine suitable for making cups with 2.5 to 12 oz. If customers require bigger cups, our model MB-S16 or MB-S22 will be your best choice.

Main Parts
MB-A12 single PE coated paper cup machine mainly consists of gear box, chain, inverter, knurling set, top rolling set, speed reducer, heating bar and bottom heating station.

Maintenance and Packing
For maintenance, users should pay attention to the lubrication of paper cup forming machine. For packing, we make use of wooden cases, which is convenient for sea transportation.

Parameters of MB-A12 Single PE Coated Paper Cup Machine

Paper Cup Size Range 2.5 to 12 oz  (80 to 330 ml)
Production Speed 45 to 50 pcs/min
Paper Cup Top Diameter Min. 45 mm to Max. 104 mm
Paper Cup Bottom Diameter Min. 35 mm to Max. 75 mm
Paper Cup Height Min. 35 mm to Max. 110 mm
Raw Material 170 to 230 gsm, Single PE Coated Paper
General Power 4.8 kW
Electricity 380 V, 3 Phases or 220V, 1 Phase
Weight 1500 kg
Measurement 2.6 m × 1.22 m × 1.7 m

Lantytk® Corp. is a professional manufacturer of single PE coated paper cup machines in China. In addition to paper cup forming machine, our company also offers paper bowl machine, paper bucket forming machine, paper plate machine, die cutting machine, cup lid machine, flexo printing machine, etc. Our products have been exported to Jordan, Algeria, Qatar, India, Indonesia, Taiwan, Libya, Russia, and so on. If you have interest in our single PE coated paper cup machines, please feel free to contact us.
