MB-CQ-850 Automatic Punching and Die Cutting Machine
Introduction

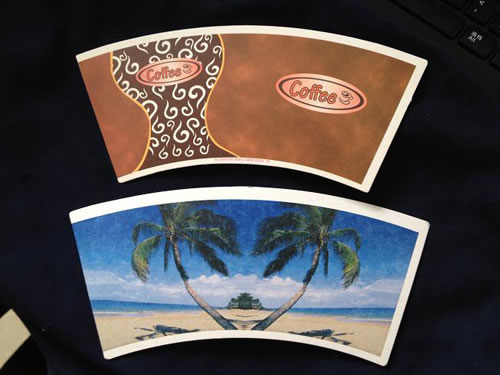

MB-CQ-850 automatic punching and die cutting machine is equipped with PLC touch screen control system. It adopts micro-computer to regulate speed, servo motor to feed paper and uses the photo sensor to track and collect materials. This kind of die cutting equipment can also realize punching and cutting at a high speed by setting certain length or tracking printing color code. The mould is imported from South Korea with durable and good die cutting features. The punching and die cutting machine is an upgraded model especially used for cutting fan shape paper cups.
Features
1. It also possesses reasonable structure.
2. Compared to the traditional cutting machine, this die cutting equipment is much more efficient, time-saving, material-saving and much more profitable.
3. The punching and die cutting machine features horizontal punching, automatic stacking, automatic stripping, smooth running, high speed, high accuracy, high efficiency and low loss.
Packaging and Transportation
We use wooden cases to package the die cutting equipment, which is convenient for sea transportation.
Parameters of MB-CQ-850 Automatic Punching and Die Cutting Machine
| Model | MB-CQ-850 |
| Overall Dimension | 3500 mm × 1500 mm × 2000 mm |
| Weight | 1500 kg |
| Speed | 160 to 200 strokes/min |
| Paper Width | 850 mm |
| Control System | AC servo motor |
| Power | 5 kW |
Lantytk® Corp. is a professional manufacturer of punching and die cutting machines in China. In addition to die cutting equipment, our company also offers paper cup machine, paper bucket forming machine, paper plate machine, paper bowl making machine, flexo printing machine, cup lid machine, etc. Our products have been exported to Jordan, Algeria, Qatar, India, Indonesia, Taiwan, Libya, Russia, and so on. If you have interest in our punching and die cutting machines, please feel free to contact us.
